Regrind end mills, drills and ball-nose cutters in-house, and stop scrapping tools you could reuse.

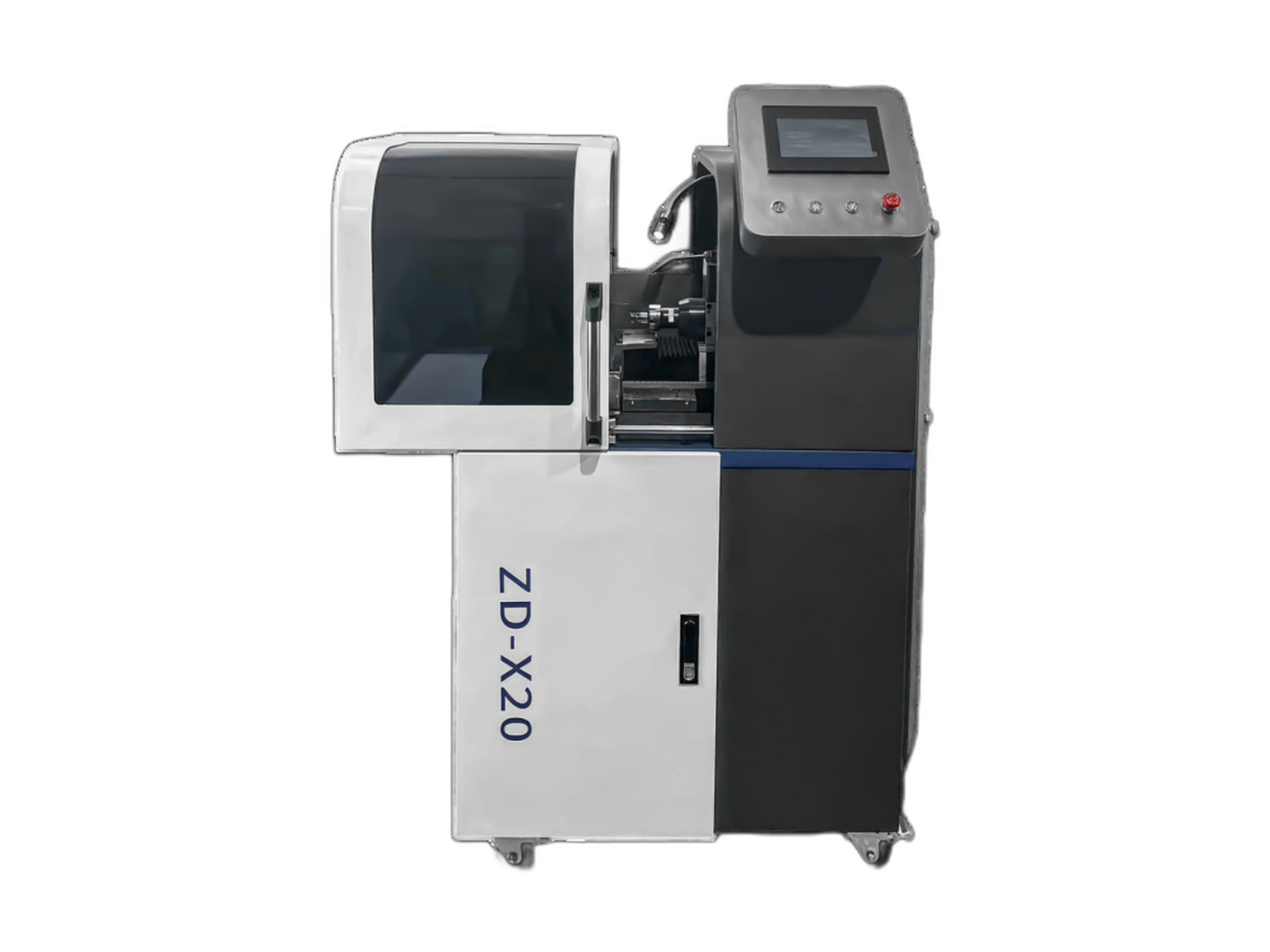

A fully automatic CNC tool regrinding machine for tungsten carbide, hard alloy and high-speed steel. Servo-driven for repeatable edge geometry, so a dull cutter goes back to work instead of the scrap bin.
Regrinds flat end mills, ball-nose, round-nose, drills and chamfer tools.
Tungsten carbide, hard alloy and HSS.
Diameter ø4 to ø20 mm, 2, 3 and 4-flute.
High-performance servo motor for stable, repeatable grinding.
1500 W, 220 V / 50 Hz, spindle 3000 rpm, 862 x 788 x 1435 mm, 150 kg.
A/B/C/D 0124 series to suit each cutter type.
| Regrind | Cutter diameter | Flutes |
|---|---|---|
| Flat end mills | ø4 to ø20 mm | 2 / 4-flute |
| Ball-nose cutters | ø4 to ø20 mm (R2 to R10) | 2 / 3 / 4-flute |
| Round-nose cutters | ø4 to ø20 mm | 2 / 4-flute |
| Drills | ø4 to ø20 mm | Standard |
Regrinding a carbide end mill costs a fraction of a new one, same day.
CNC and servo control repeat the exact geometry, so reground tools cut like new.
Every cutter earns several lives instead of one before it is retired.
No waiting on an outside regrind service to get a critical tool back.
