Vertical machining centres from compact BT40 to heavy BT50, specced to your part envelope, accuracy and cycle time.
The full ELAT range, ISO 9001 and CE certified. Nine models from a 550 mm-travel toolroom machine to a 1600 mm-travel BT50 workhorse, all on linear guideways with ±0.005 mm positioning.
550 × 320 × 430 mm travel, 800 × 265 table, 8000 rpm, 12-tool ATC.
650 × 400 × 500 mm travel, 1000 × 360 table, 16-tool ATC.
650 × 430 × 500 mm travel, 900 × 400 table, 500 kg load.
800 × 500 × 500 mm travel, spindle to 12000 rpm, 24-tool ATC.
800 × 550 × 550 mm travel, extra Y and Z for taller work.
1100 × 600 × 600 mm travel, BT40 or BT50, up to 32-tool ATC.
1300 × 700 × 700 mm travel, 1400 × 700 table, 1200 kg load.
1500 × 800 × 700 mm travel, 1600 × 800 table, 1500 kg load.
1600 × 900 × 800 mm travel, BT50, 1800 kg load.
| Model | Table (mm) | Travel X/Y/Z (mm) | Max spindle | Taper | ATC | Table load |
|---|---|---|---|---|---|---|
| XH7124 | 800 × 265 | 550 / 320 / 430 | 8000 rpm | BT40 | 12T | 200 kg |
| VMC640 | 1000 × 360 | 650 / 400 / 500 | 8000 rpm | BT40 | 16T | 300 kg |

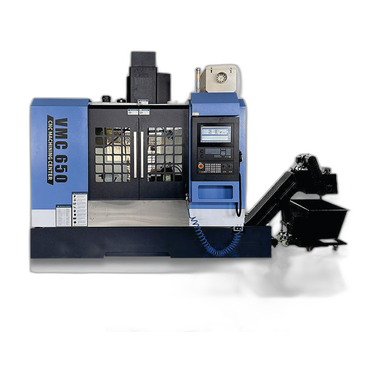

| VMC650 | 900 × 400 | 650 / 430 / 500 | 8000 rpm | BT40 | 16T/24T | 500 kg |
| VMC850 | 1000 × 500 | 800 / 500 / 500 | to 12000 rpm | BT40 | 24T | 500 kg |
| VMC855 | 1000 × 550 | 800 / 550 / 550 | to 12000 rpm | BT40 | 24T | 600 kg |

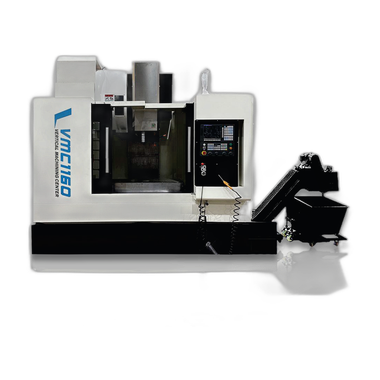

| VMC1160 | 1200 × 600 | 1100 / 600 / 600 | to 12000 rpm | BT40/BT50 | 24T/32T | 800 kg |

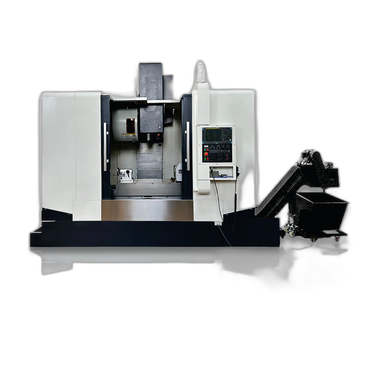

| VMC1370 | 1400 × 700 | 1300 / 700 / 700 | 8000 rpm | BT40/BT50 | 24T/32T | 1200 kg |
| VMC1580 | 1600 × 800 | 1500 / 800 / 700 | 8000 rpm | BT40/BT50 | 24T/32T | 1500 kg |
| VMC1690 | 1800 × 900 | 1600 / 900 / 800 | 8000 rpm | BT50 | 24T/32T | 1800 kg |
Common across the range: linear roller guideways, positioning accuracy ±0.005 mm, repeatability ±0.003 mm / 300 mm, disk-type ATC and chip conveyor.
We match table, travels and spindle to the parts you actually run, so you are not paying for a machine two sizes too big.
Higher-speed BT40 for finishing and lighter alloys, rigid BT50 for heavy steel cuts.
Installation, demonstration and after-sales support, so the machine keeps earning after it lands on your floor.
Linear guideways and ±0.005 mm positioning keep parts in tolerance across the shift.
